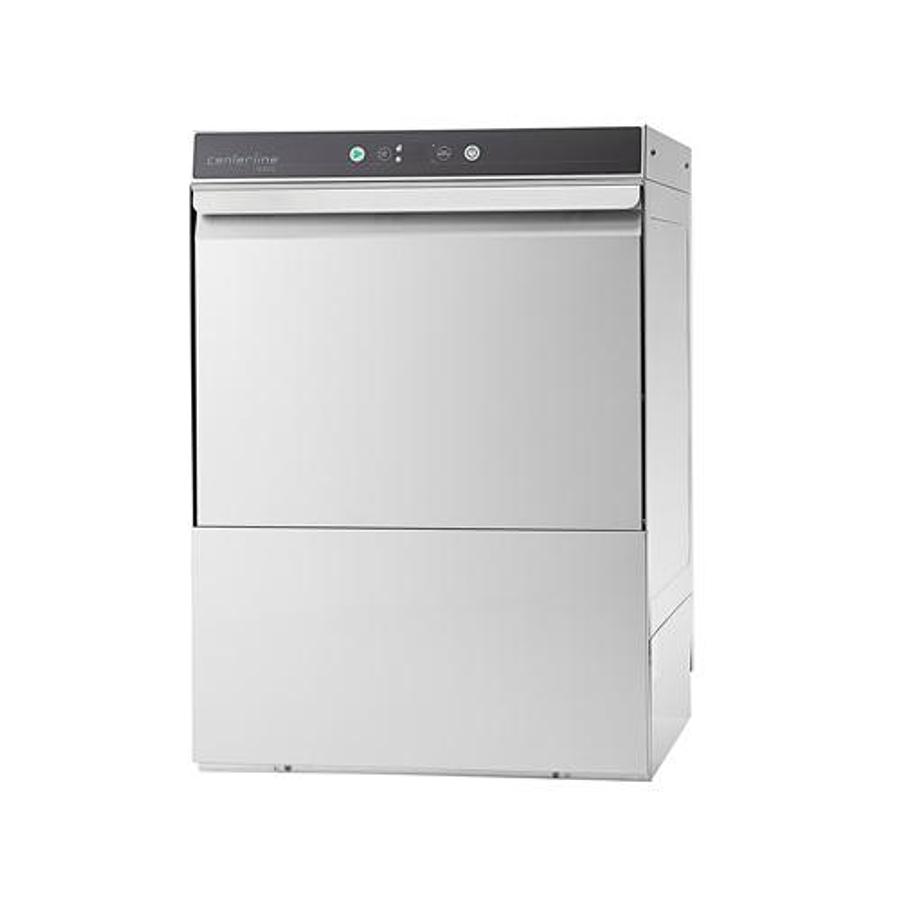

HOBART High Temperature 24 Racks / Hour Undercounter Dishwasher –

Product Description

• 24 racks per hour.
• .84 gallons of water per rack.
• Hot water sanitizing.
• Top-mounted user interface with digital temperature display.
• 2-minute cycle with optional extended cycle.
•  14.46″ door opening.
• Snap-in, revolving upper and lower anti-clogging wash & rinse arm; low-profile, single-arm design.
• Sense-a-Temp™ ensures 180°F final rinse.
• Integrated booster heater capable of 70°F rise.
• Removable, 3-part stainless steel scrap screen.
• Soft start.
• Automatic pumped drain.
• Automatic fill.
• Service diagnostics with error notifications.
• Delime notification and cycle.
• Chemical pumps standard.
• Electric tank heat.
• Two dish racks – one peg and one combination type.
•


Weight 138 Lbs Loading Height 14-3/8 Inches

Racks Per Hour 24 Racks

Wash Cycle Time 120 Seconds

Water Usage0.84 Gallons

Water Temperature110-180 Fahrenheit

Water Inlet Size 3/4 Inches

Voltage 208 - 240 Volts

Amperage 24.2 - 27.5 Amps

Wattage 6334 Watts

Hertz 60 Hertz

Phase1 Phase

Connection Hard Wire

The HOBART CUH-1 is a high-efficiency undercounter dishwasher designed for demanding environments. Capable of handling up to 24 racks per hour, this unit provides a combination of performance and convenience, making it ideal for small bars, restaurants, and catering services. Operating with a high-temperature sanitization process, it ensures a cleaner, more hygienic wash cycle without the need for additional chemicals. This dishwasher features a durable stainless-steel construction, offering both reliability and easy maintenance. Designed for easy operation, it includes user-friendly controls and indicators to streamline the washing process. With its compact build, the CUH-1 efficiently utilizes space while maintaining robust capabilities. Engineered for energy efficiency, the HOBART CUH-1 minimizes water and energy usage per cycle, contributing to lower operational costs. Its efficient design makes it suitable for establishments seeking high performance in a compact footprint.
