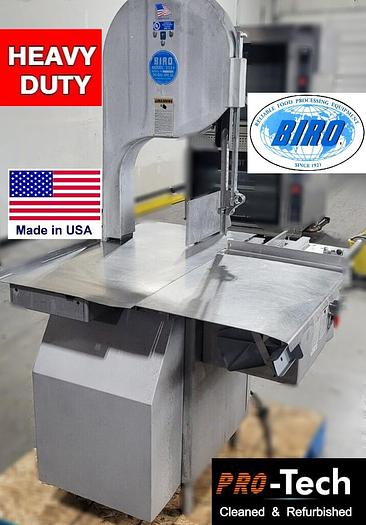

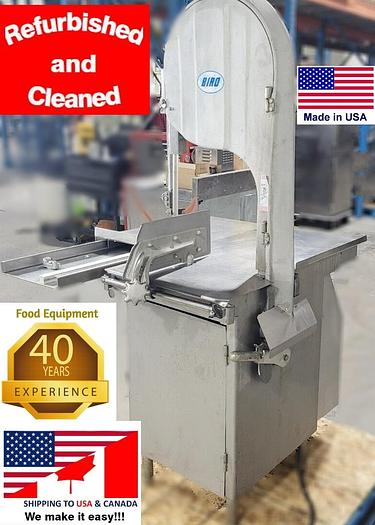

Biro 3334 16" meat saw

Biro 3334 16" meat saw

C$11,850 (CAD)

Available quantity:6

Description

Biro 3334 16″ Meat Saw Butcher Fish Grocery Bone Saw 3 ph

Product Details

3 HP Motor for efficient cutting

3 Phase 208v

General purpose switch w/ Thermal overload

The Head and door are Aluminum with a removable head & removable door

Unitized welded, Stainless steel Base Structure

124” Blade (3150mm) L x 5/8” (16mm) W x .022 (.56mm) thick, 3 teeth per inch, hard tooth, (one supplied with each saw)

Upper and lower blade backup guide assemblies with carbide long-life inserts, each removable as an assembly

Ratchet arm and cam against pound-tested spring and tension spring gauge

16” Blade Wheels, (40.64cm) single flange, cast iron, nickel plating, upper wheel assembly removable

Heavy-duty tapered roller bearings are used in the upper wheel hub and lower bearing housing

Poly Catch Pan, rounded corners, sealed off from other parts of the base, accessible through a hinged door

Stainless steel body, long-life carbide guide inserts, steel saw cleaners, removable as a unit for easy cleaning (assembly also adjustable as a unit)

Non-slip, silent V-belt drive system, tension adjustable

Stainless steel leg bolt levelers

Meat Carriage has S.S. bearings 15-1/2” (394mm) x 23-1/2” (597mm), nylon guides

Meat Gauge Plate has Stainless steel faced, adjustable from 1/16” (1.6mm) to 6-1/2” (165mm), Locks in position, easy to adjust, entire assembly removable for cleaning

Sealed off motor compartment from meat contact areas, easily accessible through the removable panel door

  • The platter is held in place with two stainless steel push-pull hold-down latchesSafety end cut pusher plate and safety pusher plate storage hanger are supplied as standard equipment
  • Specifications

    ConditionUsed
    Stock NumberRX-1222-4499
