Mach High Temp Undercounter Dishwasher

208V / 240V 50/60Hz 1 Phase 16Amp

Water drain pipe Ø25mm - 1" Max drain height 400mm

Water line requirements Ø3/4” max temp 125F (55C)

Built-in Detergent and Rinse-Aid dispense

Made in Italy

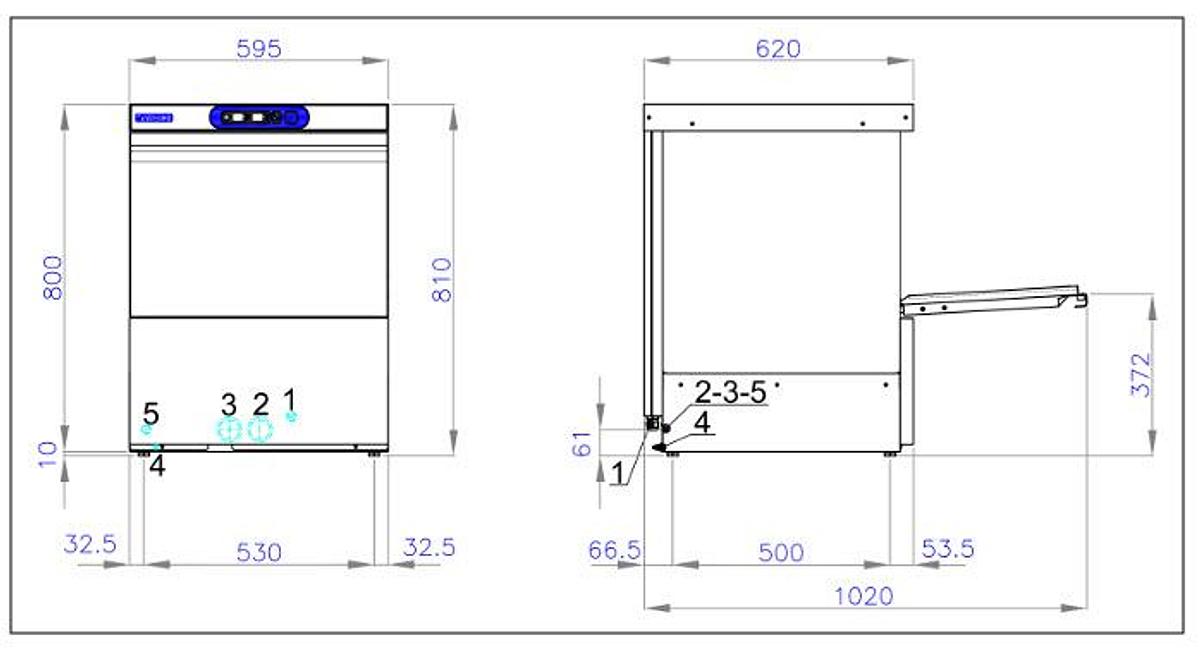

595 cm wide x 810 cm h x 620 cm deep

Tank with rounded corners.

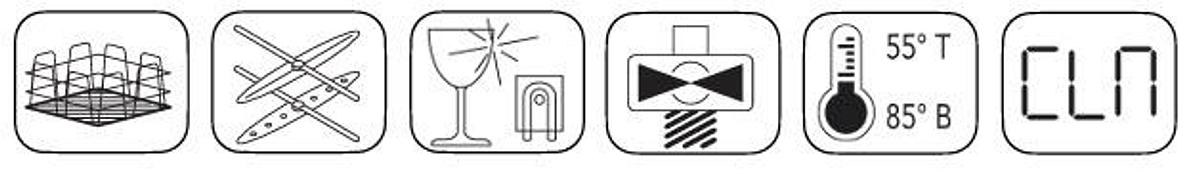

• Control panel with 5 preset wash cycle times.

• Door with magnetic safety switch • Useful washing height 31,5 cm, dish Ø32cm

• Square basket 50x50 cm. (supplied with 1 plate basket, 1 flat basket, 2 cutlery holders).

• Independent lower/upper washing and rinsing arms.

• Washing cycle time 60-90-120-150-180 seconds (capacity 360÷1080 pz/h).

• Display shows boiler and tank temperature.

• Warranty 2 year parts 1 year labour (see details)

• Built-in rinse-aid and detergent pump.

• Self-cleaning cycle (CLN).

• Built-in insulated boiler made in AISI 304L stainless steel.

• Boiler and tank heating through thermostatically protected armoured heating elements

• Tank capacity lt. 26 and boiler capacity lt. 8.

• Water consumption per cycle lt. 3,8 - Water pressure input 1,5-3,0 bar - Max temp of inlet water 125F (55C).

• Tank heating element kW 2,5 - Boiler heating element kW 3,0. • Washing pump power 3/4 HP.

• Noise level at 1 mt. < 70 dbA.

• Total power kW 3,55.
