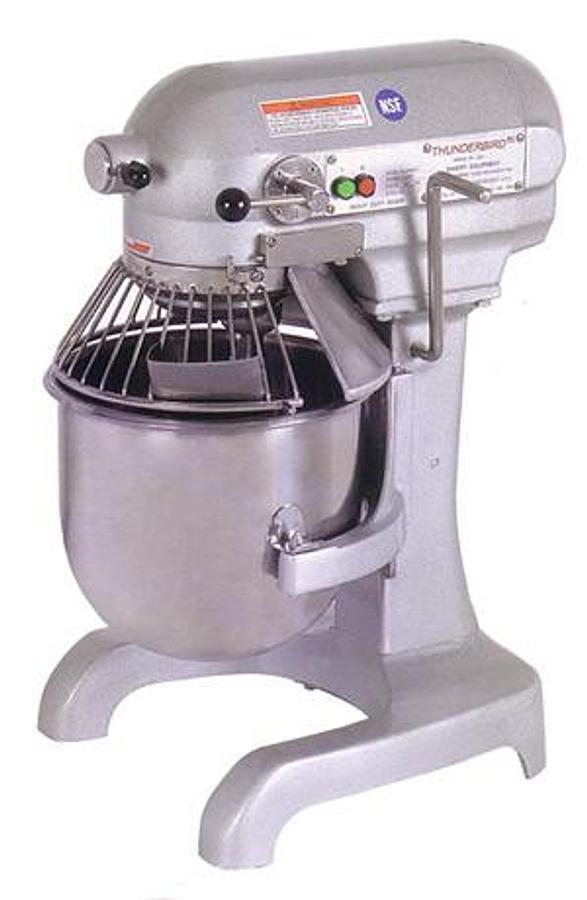

10 quart planetary mixer

Design

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

• 10-quart capacity
• Powerful ½ HP motor
• 115v/60/1, 8.5amps (220v/60/1 and 220v/50/1 available at additional cost)
• 3-Speed gear box
• Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
• Motor cooling system.
• New safety Guard available.
• NSF approved coating.
• Baked painting.
• Moisture resistant switches
• Motor thermal protector.
• No-volt Release: Prevents activation of the mixer in the event of power interruption
• Bowl lift: Manual bowl lift operated and self-locking in to position
• #8 size taper hub for attachments
• Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
• Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

 Standard Accessories

• 10-quart s/steel bowl.
• Flat batter beater
• Spiral dough hook
• Wire whip
• Safety bowl Guard
• Attachment hub

Optional Accessories

• #8 taper hub meat grinder (ARM-01A)
• EXTENDED WARRANTY up to 6 years

Specifications

Motor:3-speed

1/2HP continuous

8.5 amps

Electrical:115/60/1

220v/60/1 and 220v/50/1 available

Speed Range:Beater: 40-142

Hub: 97-350

Weight:Net: 74lbs (34kg)

Ship: 83lbs (38kg)

Dimensions:Width: 14'' (360mm)

Depth: 18'' (460mm)

Height: 24'' (610mm)

Shipping:

Width: 19'' (485mm)

Depth: 19'' (485mm)

Height: 29'' (740mm)
