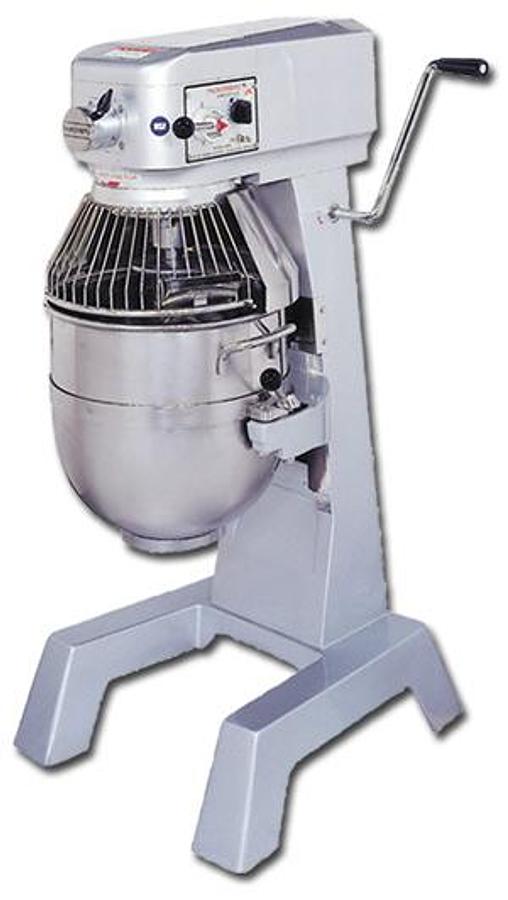

30 QUART MIXER -Planetary Mixer ARM-30N

Design

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

• 30-quart capacity
• 1-15minute timer for continuous or timed operation
• Powerful 1 HP motor
• 115v/60/1, 20amps (220v/60/1 and 220v/50/1 available at additional cost)
• 3-Speed gear box
• Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
• Motor cooling system.
• New safety Guard available.
• NSF approved coating.
• Baked painting.
• Moisture resistant switches
• Motor thermal protector.
• No-volt Release: Prevents activation of the mixer in the event of power interruption
• Bowl lift: Manual bowl lift operated and self-locking in to position
• #12 size taper hub for attachments
• Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
• Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

 Standard Accessories

• 30-quart s/steel bowl.
• Flat batter beater
• Spiral dough hook
• Wire whip
• Safety bowl Guard
• Attachment hub

Optional Accessories

• #12 taper hub meat grinder (ARM-02A)
• #12 taper hub Vegetable shredder with plate holder (ARM-02B)
• Bowl dolly
• Reduction set
• EXTENDED WARRANTY up to 6 years

Specifications

Motor:3-speed

1HP continuous

20 amps

Electrical:115/60/1

220v/60/1 and 220v/50/1 available

Speed Range:Beater: 40-150

Hub: 105-338

Weight:Net: 396lbs (180kg)

Ship: 467lbs (212kg)

Dimensions:Width: 25'' (635mm)

Depth: 25'' (560mm)

Height: 46'' (1168mm)

Shipping:

Width: 28'' (711mm)

Depth: 28'' (711mm)

Height: 52'' (1320mm)
