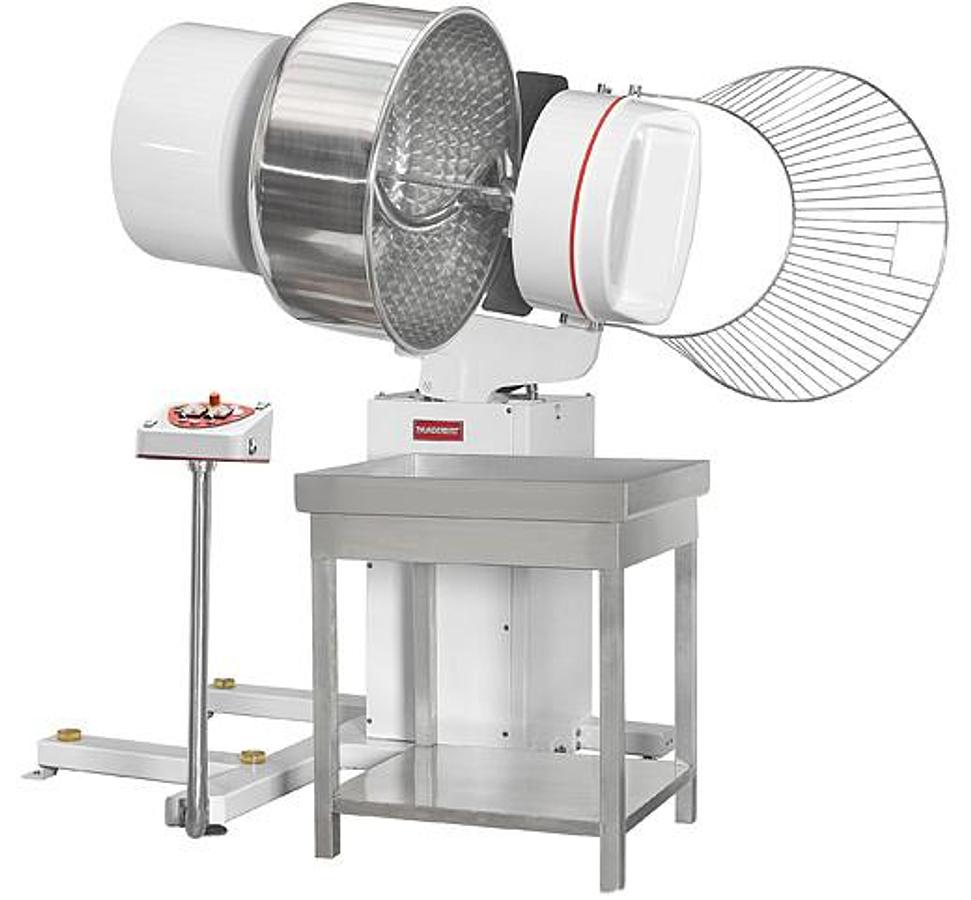

Spiral Mixer ASP-160(LT) -Reinforced & Self-Empty -281 QUARTS

• Voltages available:220V,380V,400V,440V,50Hz/60Hz, 3phase.
• Simple to use, manual or automatic digital control panel.
• Hydraulic lifting and lowering system.
• Equipped with European Spiral Hook, Dough Knife and Bowl.
• Easy dough extraction controlled by the bowl jog switch.
• Possible discharge height: into Divider at 1900 mm.
• Possibility of bowl reverse rotation in 1st speed.
•

• Mixers designed with electronic control panel for higher efficiency.
• 2 powerful heavy duty motors, one for Bowl and one for the Hook
• Bowl, Dough Knife and Spiral Hook are Stainless steel.
• Superior torque transmission which eliminates vibration and noise for heavy loads.
• Metal-rubber composite gear type, non-slipping.
• Heavy duty frame with lead-free baked painting for easy cleaning.
• Motor overload protection.
• NSF, CE, ETL approval.

Specifications

Capacity:Flour capacity (kg)/(lbs) 100/220

Dough capacity (kg)/(lbs) 160/352

Bowl capacity (qts/ltrs) 281 / 266

Dia. of bowl (mm) 900mm/36in

Height of bowl (mm) 420mm/16.53in

Motor:12+2HpDimensions:77"(L)x65"(W)x71"(H)

or 1950 (L)X1650(W)X1800mm(H)

Machine Weight: 3113 lbs or 1415 kgs
