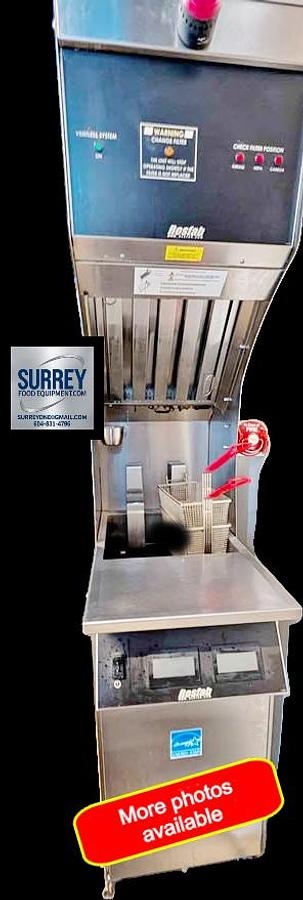

Resfab self contained deep fryer

MB-85AT MB-85ATV

Voltage 208 240 208 240

Heater KW 19.8 19.8 19.8 19.8

Phase 3 AMP 60

Multi-Basket Configurations: The Auto-Lift Systems allows for the

use of one large basket or two independently operating

half-size baskets.

Idle Mode Saves Energy: Between loads and or busy periods, an

idle mode allows the operator to be in a “stand-by” position leading

to significant savings in energy consumption.

Sleep mode: After 30 minutes of non-use the fryer will automatically

go to sleep mode. This will be additional savings in energy

consumption. Recovery within seconds.

Zero recovery Time

The operator can fry batch after batch without waiting for the fryer

temperature to recover.

8 Gallon per minute pump to fasten filtration process & save time

No Manipulation of Hot Parts

The filtration tank slides into the fryer and automatically connects to

the pump pipe, and the pump reset is accessible since there are no

panels to remove. The risk of injury is greatly reduced.

Easy and Safe Transportation & Removal of Shortening/Oil

A removable carrying handle attaches to the filtration tank (which

comes equipped with casters). OM-80 Oil Caddy complete Oil Management System.

Safety Comes First

Lift-up heater for easier cleaning

No filter over-ride without PIN.

Ventless Hood System:

Integrated Fire Suppression System: The ventless fryer comes

equipped with an integrated (Ansul R-102) fire suppression system.

The unit is ready for the final charging and testing to be performed

on site by an authorized Ansul distributor.

Integrated Alarm System. Unit has self contained alarm system

with interlock ready to connect to the store alarm if required by your

local fire code.

Ventless Hood System exceeds EPA Standard 202 for the release

of particulate matters and meets NFPA 96 standards.

Indicator Light: An indicator light will go on to provide advanced

warning that the filter needs to be replaced.

Air-Flow Sensor: A built-in sensor will automatically shut off the

fryer if the HEPA filter is not replaced when required.

Guaranteed Performance: If the filters are not installed or secured

properly, an “interlock” system will not allow the fryer to function.

Two half Baskets
