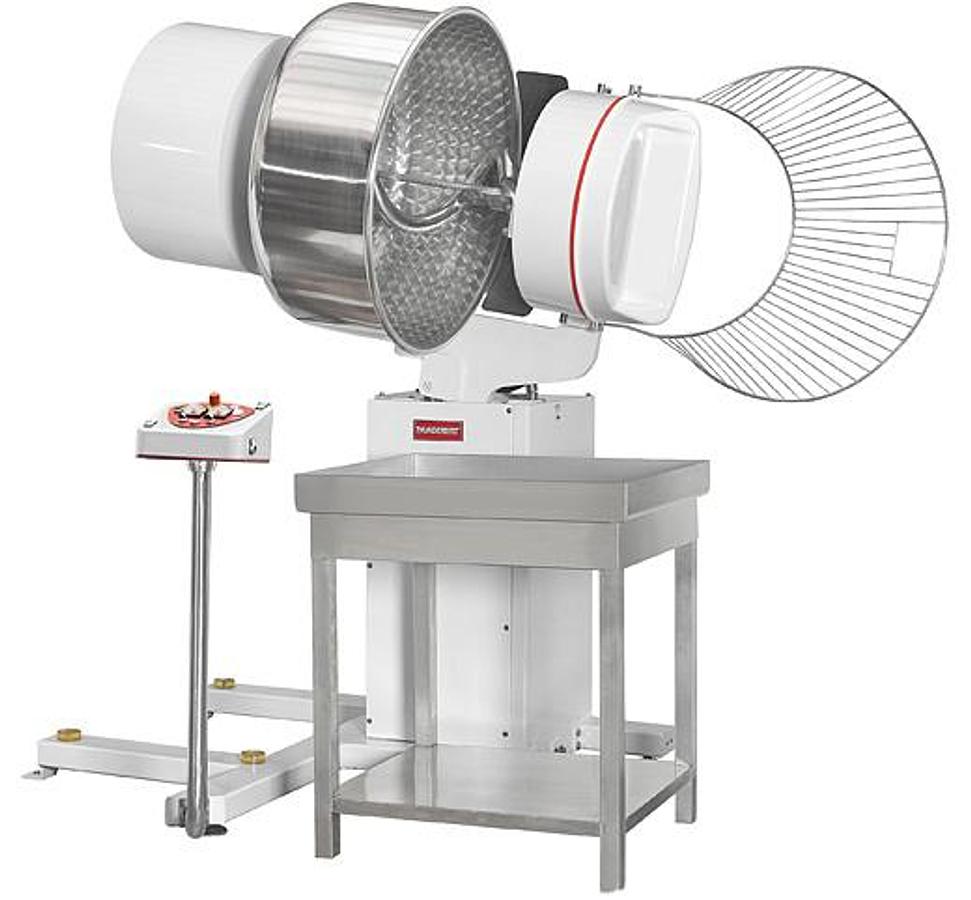

Spiral Mixer ASP-200(LT) Reinforced & Self-Empty

• Voltages available:220V,380V,400V,440V,50Hz/60Hz,3phase
• Simple to use, manual or automatic digital control panel.
• Hydraulic lifting and lowering system.
• Equipped with European Spiral Hook, Dough Knife and Bowl.
• Easy dough extraction controlled by the bowl jog switch.
• Possible discharge height: into Divider at 1900 mm.
• Possibility of bowl reverse rotation in 1st speed.
• Mixers designed with electronic control panel for higher efficiency.
• 2 powerful heavy duty motors, one for Bowl and one for the Hook
• Bowl, Dough Knife and Spiral Hook are Stainless steel.

• Superior torque transmission which eliminates vibration and noise for heavy loads.
• Metal-rubber composite gear type, non-slipping.
• Heavy duty frame with lead-free baked painting for easy cleaning.
• Motor overload protection.
• NSF, CE, ETL approval.

Specifications

Capacity:Flour capacity (kg)/(lbs) 128/282

Dough capacity (kg)/(lbs) 200/440

Bowl capacity (qts/ltrs) 336 / 318

Dia. of bowl (mm) 900mm/36in

Height of bowl (mm) 450mm/17.80in

Motor:16+2HpDimensions:77"(L)x65"(W)x71"(H) or

1950 (L)X1650(W)X1800mm(H)

Machine Weight:3280 lbs or

1490 kgs

The Spiral Mixer ASP-200(LT) from Thunderbird offers exceptional performance for bakery and pizza operations. This robust and reliable mixer is designed for high-volume production, efficiently handling large batches with ease. Its reinforced structure ensures durability and longevity, even under the most demanding conditions. The self-emptying feature simplifies the workflow, allowing for batch processing without unnecessary downtime. This state-of-the-art spiral mixer is ideal for kneading dough, thanks to its powerful motor and precision-engineered components, which ensure consistent and thorough mixing. The ergonomic design of the ASP-200(LT) not only enhances user comfort but also improves operational efficiency. Its intuitive controls and clear display make it user-friendly, even for those new to commercial baking equipment. Constructed with high-quality materials, this mixer prioritizes both performance and hygiene. It is easy to clean and maintain, reducing the risk of contamination and downtime. Whether you’re a small artisan bakery or a large-scale pizza operation, the Thunderbird Spiral Mixer ASP-200(LT) provides unmatched quality and reliability, ensuring that your dough-making process is as smooth and efficient as possible.
