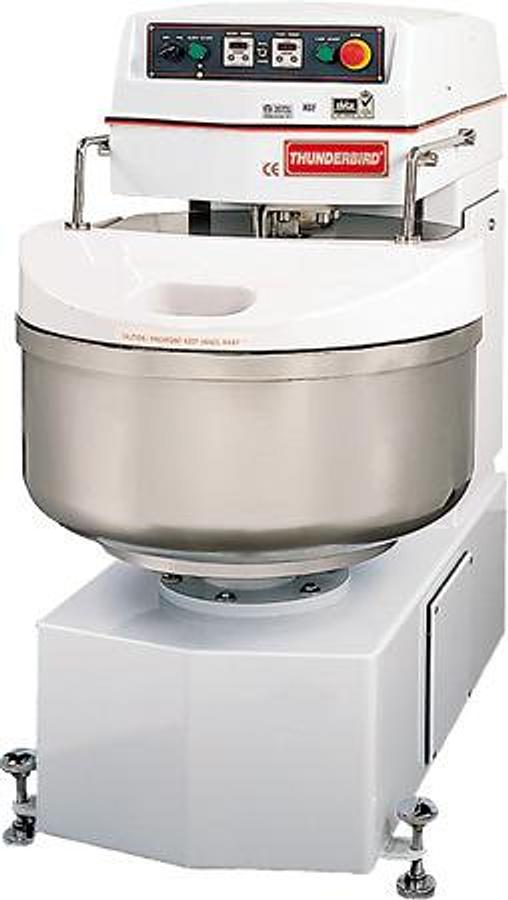

Spiral Mixer ASP-60

7Hp spiral mixer designed especially for heavy dough such as pizzas and bagels. This machine is designed with a long lasting stainless steel 110 qt bowl that can handle 132 lbs of dough and is equiped with a plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Specifications

Capacity:Flour capacity (kg)/(lbs) 40/88

Dough capacity (kg)/(lbs) 60/132

Bowl capacity (qts) 110

Dia. of bowl (mm) 600mm/24in

Height of bowl (mm) 360mm/14.17in

Motor:Horsepower 7Hp / 1HP

1st speed (kw) 2.0

2nd speed (kw) 4.0

Bowl(kw) 0.6

Dimensions:Width (mm) 655mm/26in

Length (mm) 1120/44in

Height(mm) 1318/52in

Machine Weight  (kg/lb):380/838
